Melt Compound Process (MCP) Technology

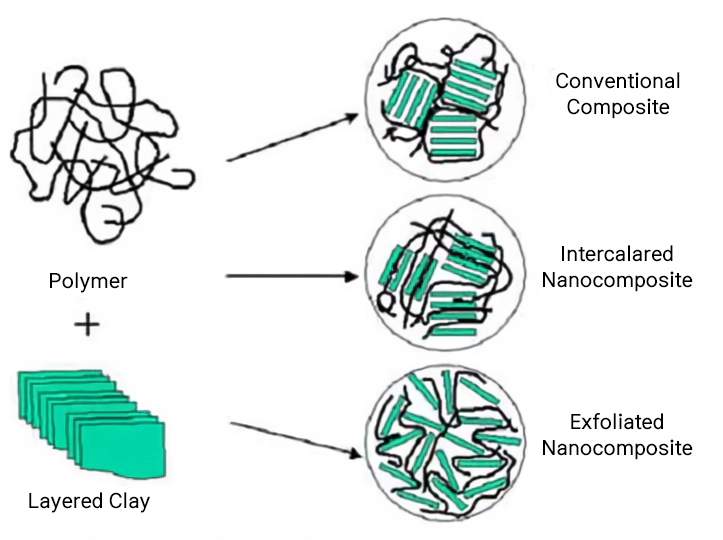

Mass production manufacturing technology addressing dispersion issues in rubber-based nanocomposites
Characteristics
- Faster vulcanization speed
- Increased hardness and tensile strength
- Improved durability
Now DIAMOND R.TECH will take responsibility for rubber products.
Mass production manufacturing technology addressing dispersion issues in rubber-based nanocomposites
Methodes of Measurements |
Units of Measurements |
Specification |
Result |
|---|---|---|---|
| Mooney Viscometer | ML1+4(121℃) | - | 70.8 |
| Specific gravity | - | - | 1.12 |
| CNT content | % | - | 10 |
Item |
General (NBR) |
Nano (NBR) |
|
|---|---|---|---|
| Rheo | Tmax | 10.2 | 13.6 |
| Tmin | 5.1 | 4.8 | |
| Tc 10 | 3:59 | 1:53 | |
| TC 90 | 9:05 | 6:25 | |
| Hardness (Shore A) | 62 | 66 | |
| Tensile Strength (Kg/Cm2) | 114 | 158 | |
| Elongation (%) | 933 | 631 | |
| Specific Gravity | 1.177 | 1.156 | |

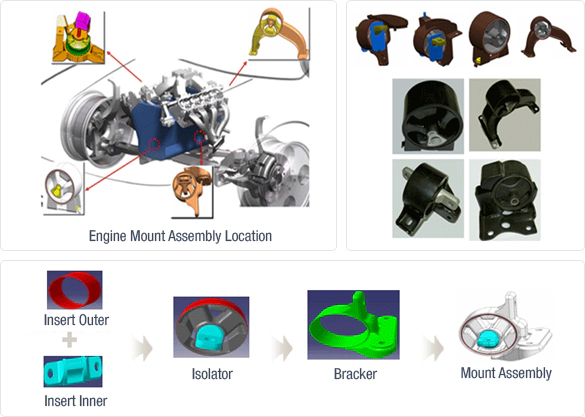

Anti-vibration rubber material

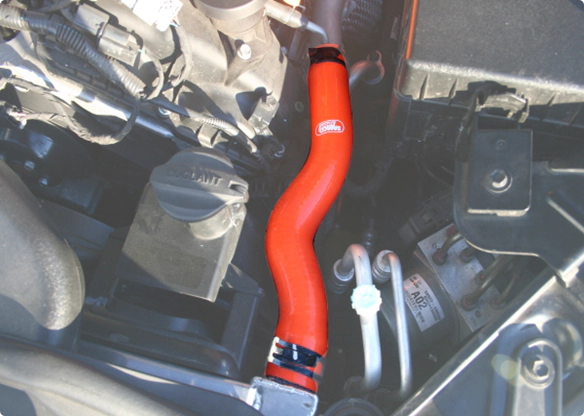

Hose rubber material
