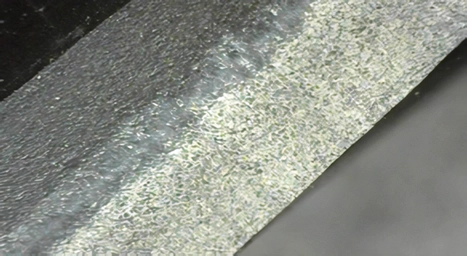

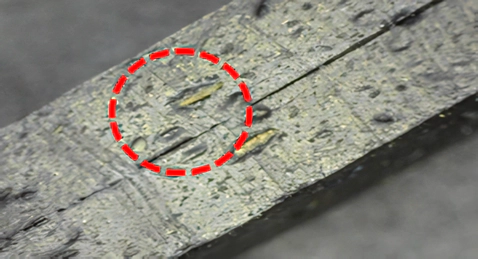

Bending ratio
Unit : PHR
Category |
A | B | C |
|---|---|---|---|
POLYMER |
100 | 85 | 85 |
Filler |
45 | 45 | 45 |
Fatty acid |
1 | 1 | 1 |
Zinc oxide |
5 | 5 | 5 |
Crosslinking agent |
2 | 2 | 2 |
Accelerator |
1 | 1 | 1 |
Nanocellulose |
25 | ||
Nanocellulose |
29.2 |

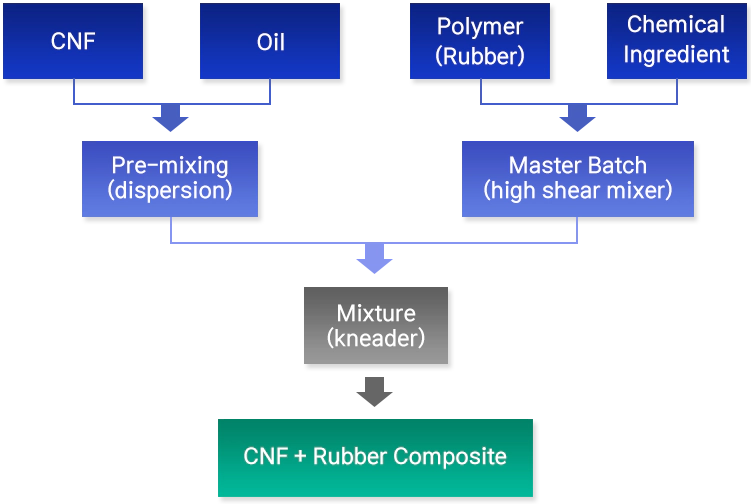

*Compounding pre-mix with pressure type kneader
*Sheeting with roll
Property results applying PRE MASTER BATCH
ITEM |
Unit |
A |
B |
C |
Method |
|---|---|---|---|---|---|
| 25% Modulus | kg/㎠ | 9.5 | 14.9 | 13.6 | KSM6518 |
| 50% Modulus | kg/㎠ | 14.1 | 23.8 | 21.5 | |
| 100% Modulus | kg/㎠ | 24.3 | 38 | 37 | |
| Tensile strength | kg/㎠ | 211 | 95 | 196 | |
| Elongation at break | % | 485 | 284 | 447 | |
| Hardness | Shore A | 62 | 64 | 64 | |
| Density | - | 1.112 | 1.109 | 1.108 |
PRE MASTER BATCH : Superior Modulus
